| Lead Time1 | - {Contact your local sales office for more information.} |
Return Policy |
- This product cannot be cancelled or returned once the order has been processed. |
Robot Configuration |
- Articulated |
Number of Axes |
- 3-axis |
Max. Vertical Reach |
- 352 mm |
Max. Horizontal Reach |
- 390 mm |
Power Supply |
- DC |
Transportable Mass |
- 1 kg |
Input Voltage (V) |
- 24 VDC |

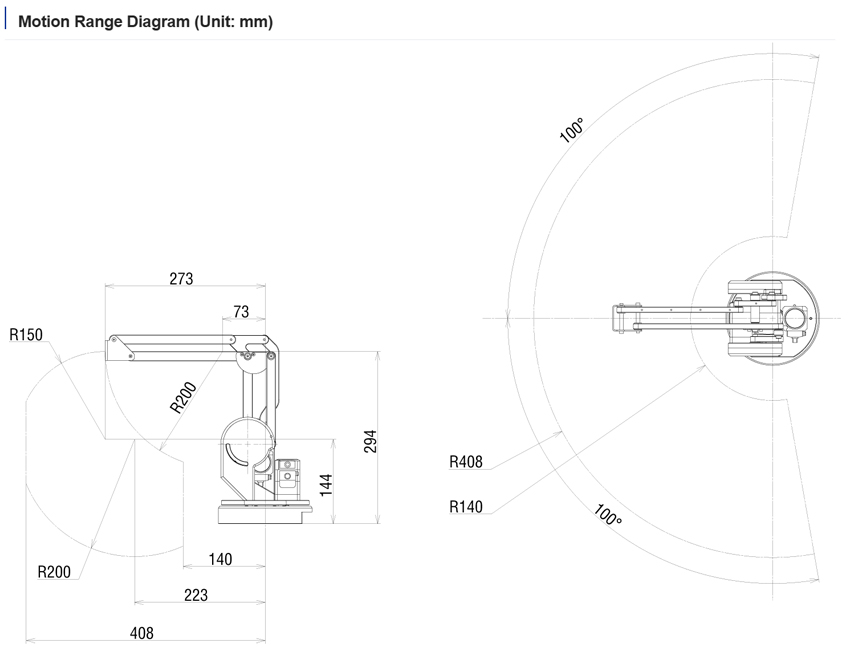

Moving Range - S-axis (Swiveling) |
- ±100 deg |
Moving Range - L-axis (Lower arm) |
- 0~+90 deg |
Moving Range - U-axis (Upper arm) |
- 0~+100 deg |
Repetitive Positioning Accuracy |
- ±0.1 mm |

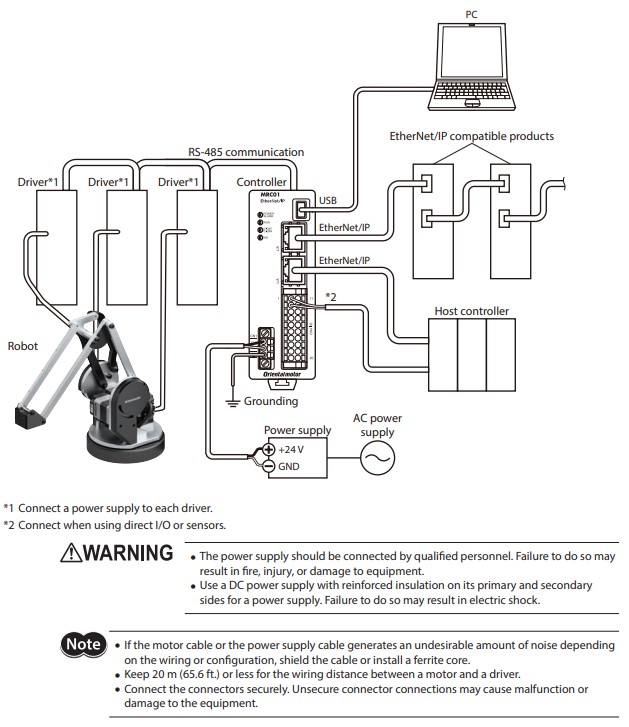

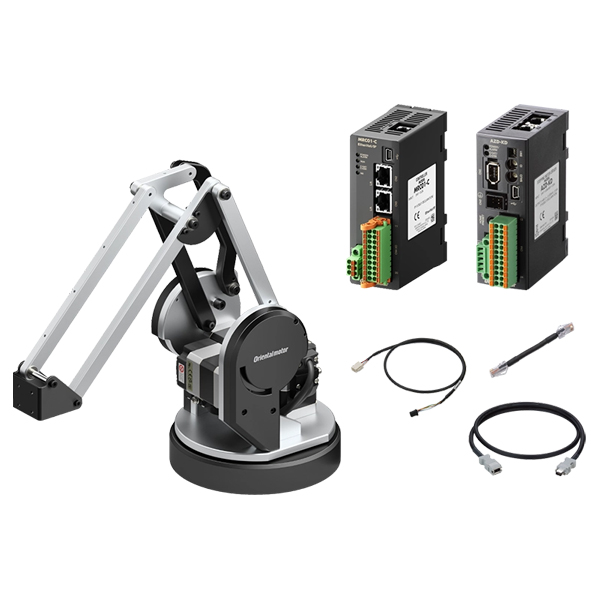

Components |
-
MSE3039K1-V, Industrial Training Robot (Request Quote) MRC01, AZ Series Robot Controller EtherNet/IP™ ($1,870.00) AZD-KD, AZ Series Driver with Built-in Controller (Stored Data) (24/48 VDC) ($534.00) CC001-RS4, RS485 Communication Cable (0.33 ft. [0.1 m]) ($35.00) CC010VNR-E2, Flexible Encoder Connection Cable (AZ Series) (1 m [3.3 ft]) ($59.00) CC010VZR2-M, Flexible Motor Connection Cable (AZ Series DC Input) (1 m [3.3 ft]) ($53.00) |
California Proposition 65 |
-
⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser. |
|
|
|
|
|
|
- 1 Quoted Ship Date for orders placed before 12:00 pm PST. Quantities may affect Shipping Date.
