Stepper Motor

The CMK Series is a motor and driver package consisting of a stepper motor and one of the smallest, lightest 24 VDC input microstepping drivers in the industry, allowing for a reduction in size and vibration in your equipment. There are 5 preset step angles with a maximum microstep resolution of 16 divisions. Operating current is set by a digital switch that is easy to use.

  • Compact driver
  • Standard performance
  • Encoder options
  • Geared option
  • Resolution - 1.8º ~ 0.1125º [5 steps] (Microstep)
  • 24 VDC power supply input
  • RoHS compliant
Unit of Measure
1 2 3 4 5 »

Item #

Frame Size

Speed-Torque Characteristics

Holding Torque

Shaft/Gear Type

Gear Ratio (X:1)

Encoder Output

Power Supply

Shaft

Basic Step Angle

Web Price

CMK243MAPA-R26 - 1.65 in
Speed - Torque Characteristics
 		- 22 oz-in - Round Shaft (No Gearhead) - - 400 P/R, 3-Channel - 24 VDC - Single - 0.9º Request Quote
CMK243MBPA - 1.65 in
Speed - Torque Characteristics
 		- 22 oz-in - Round Shaft (No Gearhead) - - - 24 VDC - Double - 0.9º Request Quote
CMK243PAR15S10 - 1.65 in
Speed - Torque Characteristics
 		- 78 oz-in - Spur Gear (Offset Shaft) - 10 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.18º Request Quote
CMK243PAR15S18 - 1.65 in

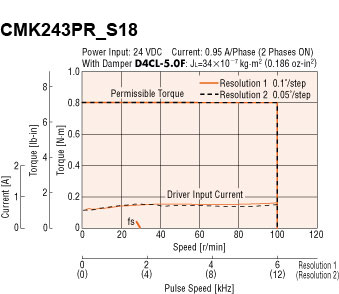

Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 18 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.1º Request Quote
CMK243PAR15S3.6 - 1.65 in

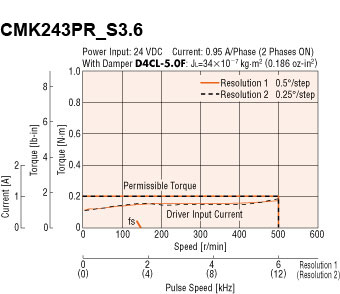

Speed - Torque Characteristics
 		- 28 oz-in - Spur Gear (Offset Shaft) - 3.6 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.5º Request Quote
CMK243PAR15S36 - 1.65 in

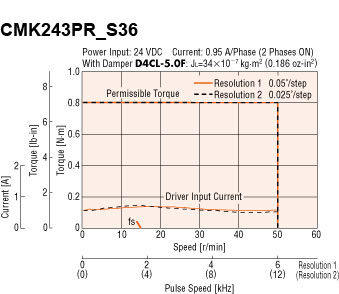

Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 36 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.05º Request Quote
CMK243PAR15S7.2 - 1.65 in

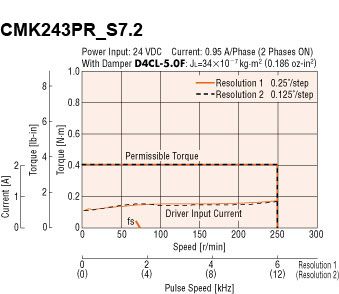

Speed - Torque Characteristics
 		- 56 oz-in - Spur Gear (Offset Shaft) - 7.2 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.25º Request Quote
CMK243PAR15S9 - 1.65 in

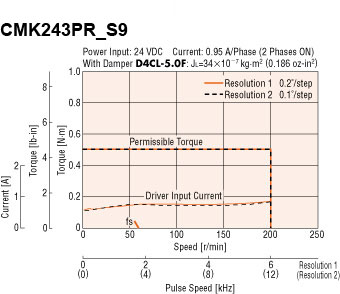

Speed - Torque Characteristics
 		- 70 oz-in - Spur Gear (Offset Shaft) - 9 :1 - 200 P/R, 2-Channel - 24 VDC - Single - 0.2º Request Quote
CMK243PAR16S10 - 1.65 in
Speed - Torque Characteristics
 		- 78 oz-in - Spur Gear (Offset Shaft) - 10 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.18º Request Quote
CMK243PAR16S18 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 18 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.1º Request Quote
CMK243PAR16S3.6 - 1.65 in
Speed - Torque Characteristics
 		- 28 oz-in - Spur Gear (Offset Shaft) - 3.6 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.5º Request Quote
CMK243PAR16S36 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 36 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.05º Request Quote
CMK243PAR16S7.2 - 1.65 in
Speed - Torque Characteristics
 		- 56 oz-in - Spur Gear (Offset Shaft) - 7.2 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.25º Request Quote
CMK243PAR16S9 - 1.65 in
Speed - Torque Characteristics
 		- 70 oz-in - Spur Gear (Offset Shaft) - 9 :1 - 400 P/R, 2-Channel - 24 VDC - Single - 0.2º Request Quote
CMK243PAR25S10 - 1.65 in
Speed - Torque Characteristics
 		- 78 oz-in - Spur Gear (Offset Shaft) - 10 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.18º Request Quote
CMK243PAR25S18 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 18 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.1º Request Quote
CMK243PAR25S3.6 - 1.65 in
Speed - Torque Characteristics
 		- 28 oz-in - Spur Gear (Offset Shaft) - 3.6 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.5º Request Quote
CMK243PAR25S36 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 36 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.05º Request Quote
CMK243PAR25S7.2 - 1.65 in
Speed - Torque Characteristics
 		- 56 oz-in - Spur Gear (Offset Shaft) - 7.2 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.25º Request Quote
CMK243PAR25S9 - 1.65 in
Speed - Torque Characteristics
 		- 70 oz-in - Spur Gear (Offset Shaft) - 9 :1 - 200 P/R, 3-Channel - 24 VDC - Single - 0.2º Request Quote
CMK243PAR26S10 - 1.65 in
Speed - Torque Characteristics
 		- 78 oz-in - Spur Gear (Offset Shaft) - 10 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.18º Request Quote
CMK243PAR26S18 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 18 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.1º Request Quote
CMK243PAR26S3.6 - 1.65 in
Speed - Torque Characteristics
 		- 28 oz-in - Spur Gear (Offset Shaft) - 3.6 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.5º Request Quote
CMK243PAR26S36 - 1.65 in
Speed - Torque Characteristics
 		- 112 oz-in - Spur Gear (Offset Shaft) - 36 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.05º Request Quote
CMK243PAR26S7.2 - 1.65 in
Speed - Torque Characteristics
 		- 56 oz-in - Spur Gear (Offset Shaft) - 7.2 :1 - 400 P/R, 3-Channel - 24 VDC - Single - 0.25º Request Quote
