Power Supply |
- 24 ~ 48 VDC |
Input Current |
- 0.2 A |
Power Supply Allowable Operating Voltage |
- DC15-55 V |
Interface - Control Input |
- 8 points, Photocoupler |
Interface - Control Output |
- 8 points, Photocoupler/Open collector |

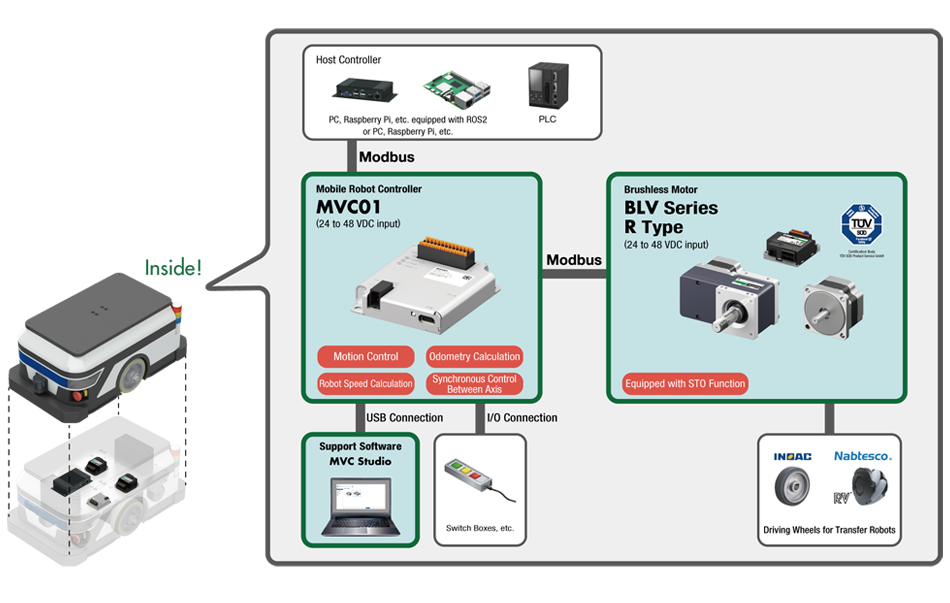

Controller Type |
- Mobile Robot Controller |
Interface - Field Network |
- RS-485 |
USB Connector |
-
USB 2.0 (Full-Speed) Length 3 m (9.8 ft.) max. Type: C |
Robot Model |
- AGV/AMR |
Setting Tool |
- Programming Software MVC Studio |
Safety Standards |
- CE |
California Proposition 65 |
-
⚠ CA WARNING |
Degree of Protection |
- IP10 |
Mass |
- 60 g2.12 oz |
Ambient Temperature Range |
- 0ºC ~ +50ºC (+32ºF ~ +122ºF) (nonfreezing) |
Ambient Humidity |
- 85% max. (noncondensing) |
Operating Atmosphere |
- No corrosive gases or dust. The product should not be exposed to water or oil. |
Electrical Characteristics |
- Complies with EIA-485. The maximum total length of communication cable is 50 m when using twisted-pair wire (TIA/EIA-568B CAT5e or better recommended). |
Communication Method |
- Half duplex, Asynchronous communication (data: 8 bits, stop bit: 1 bit or 2 bits, parity: none, even, or odd) |
Transmission Rate |
- Select either from 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, 230400 bps |
Communication Protocol |
- Modbus RTU Mode |

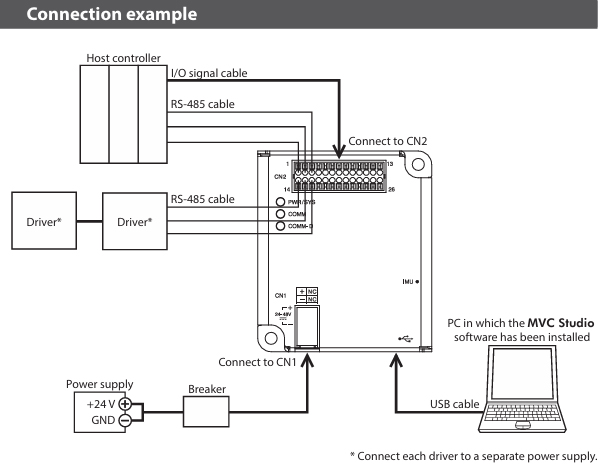

Connection Type |
- Host controller: Only one controller can be connected to a single host controller. Driver: Up to four drivers can be connected to a single controller. |
|
|
|
|
|
|
