The CRK Series is a motor/driver package consisting of a high-performance stepper motor and a compact, low vibration microstepping driver with Oriental Motor's Smooth Drive function. This function allow for easy adoption into existing applications without the need to change the pulse input from the controller. The compact high-torque and high-resolution type motors together with the high performance geared motors provide a wide variety of advanced stepper motor solutions.
Item # |
Frame Size |
Speed-Torque Characteristics |
Holding Torque |
Shaft/Gear Type |
Gear Ratio (X:1) |
Encoder Output |
Shaft |
Power Supply |
Basic Step Angle |
Web Price |
UPC Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CRK566AP-PS7 | - 2.36 in |

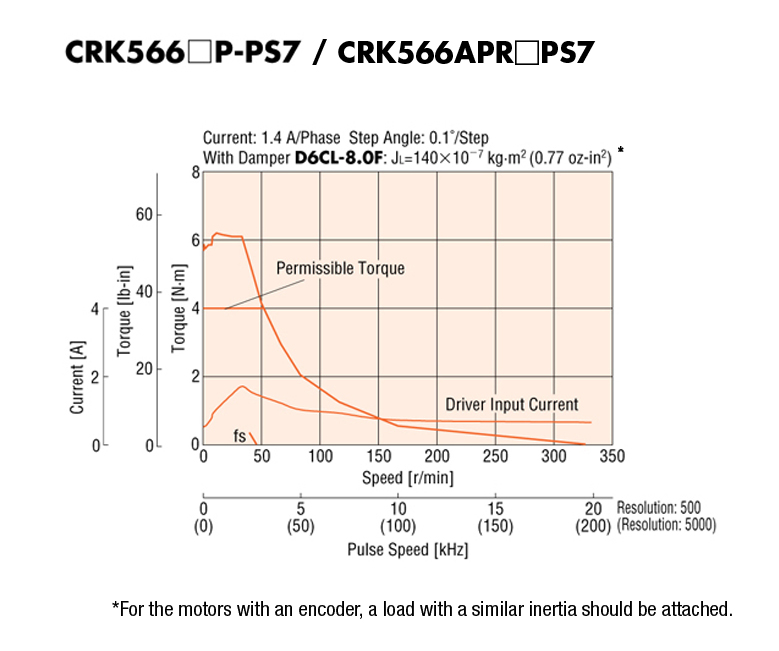

 Speed-Torque Characteristics |
- 560 oz-in | - Planetary Gear | - 7.2 :1 | - None | - Single | - 24 VDC | - 0.1º | Request Quote | - |
| CRK566BP-PS10 | - 2.36 in |
 Speed-Torque Characteristics |
- 710 oz-in | - Planetary Gear | - 10 :1 | - None | - Double | - 24 VDC | - 0.072º | Request Quote | - |
| CRK566BP-PS5 | - 2.36 in |
 Speed-Torque Characteristics |
- 490 oz-in | - Planetary Gear | - 5 :1 | - None | - Double | - 24 VDC | - 0.144º | Request Quote | - |
| CRK566BP-PS7 | - 2.36 in |
Speed-Torque Characteristics |
- 560 oz-in | - Planetary Gear | - 7.2 :1 | - None | - Double | - 24 VDC | - 0.1º | Request Quote | - |
| CRK564APR27T3.6 | - 2.36 in |
 Speed - Torque Characteristics |
- 176 oz-in | - Taper Hobbed Gear | - 3.6 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.2º | Request Quote | - |
| CRK564APR27T7.2 | - 2.36 in |
 Speed - Torque Characteristics |
- 352 oz-in | - Taper Hobbed Gear | - 7.2 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.1º | Request Quote | - |
| CRK564APR27T10 | - 2.36 in |
 Speed - Torque Characteristics |
- 416 oz-in | - Taper Hobbed Gear | - 10 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.072º | Request Quote | - |
| CRK564APR27T20 | - 2.36 in |
 Speed - Torque Characteristics |
- 480 oz-in | - Taper Hobbed Gear | - 20 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.036º | Request Quote | - |
| CRK564APR27T30 | - 2.36 in |
 Speed - Torque Characteristics |
- 560 oz-in | - Taper Hobbed Gear | - 30 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.024º | Request Quote | - |
| CRK564APR27H50 | - 2.36 in |
 Speed - Torque Characteristics |
- 768 oz-in | - Harmonic Gear | - 50 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.0144º | Request Quote | - |
| CRK564APR27H100 | - 2.36 in |
 Speed - Torque Characteristics |
- 1120 oz-in | - Harmonic Gear | - 100 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.0072º | Request Quote | - |
| CRK564APR27PS25 | - 2.36 in |
 Speed-Torque Characteristics |
- 1130 oz-in | - Planetary Gear | - 25 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.0288º | Request Quote | - |
| CRK564APR27PS36 | - 2.36 in |
 Speed-Torque Characteristics |
- 1130 oz-in | - Planetary Gear | - 36 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.02º | Request Quote | - |
| CRK564APR27PS50 | - 2.36 in |
 Speed-Torque Characteristics |
- 1130 oz-in | - Planetary Gear | - 50 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.0144º | Request Quote | - |
| CRK566APR27PS5 | - 2.36 in |
Speed-Torque Characteristics |
- 490 oz-in | - Planetary Gear | - 5 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.144º | Request Quote | - |
| CRK566APR27PS7 | - 2.36 in |
Speed-Torque Characteristics |
- 560 oz-in | - Planetary Gear | - 7.2 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.1º | Request Quote | - |
| CRK566APR27PS10 | - 2.36 in |
Speed-Torque Characteristics |
- 710 oz-in | - Planetary Gear | - 10 :1 | - 500 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.072º | Request Quote | - |
| PK564NAW-R17 / CRD5114P / LCR04060A | - 2.36 in |
 Speed - Torque Characteristics |
- 59 oz-in | - Round Shaft (No Gearhead) | - | - 500 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $473.00 | - |
| PK566NAW-R17 / CRD5114P / LCR04060A | - 2.36 in |
 Speed - Torque Characteristics |
- 117 oz-in | - Round Shaft (No Gearhead) | - | - 500 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $481.00 | - |
| PK564NAW-R18 / CRD5114P / LCR04060A | - 2.36 in |
Speed - Torque Characteristics |
- 59 oz-in | - Round Shaft (No Gearhead) | - | - 1000 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $484.00 | - |
| PK564NAW-R28 / CRD5114P / LCR05060A | - 2.36 in |
Speed - Torque Characteristics |
- 59 oz-in | - Round Shaft (No Gearhead) | - | - 1000 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.72º | $484.00 | - |
| PK566NAW-R18 / CRD5114P / LCR04060A | - 2.36 in |
Speed - Torque Characteristics |
- 117 oz-in | - Round Shaft (No Gearhead) | - | - 1000 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $492.00 | - |
| PK566NAW-R28 / CRD5114P / LCR05060A | - 2.36 in |
Speed - Torque Characteristics |
- 117 oz-in | - Round Shaft (No Gearhead) | - | - 1000 P/R TTL 3-Channel | - Single | - 24 VDC | - 0.72º | $492.00 | - |
| PK569NAW-R17 / CRD5114P / LCR04060A | - 2.36 in |
 Speed - Torque Characteristics |
- 230 oz-in | - Round Shaft (No Gearhead) | - | - 500 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $512.00 | - |
| PK569NAW-R18 / CRD5114P / LCR04060A | - 2.36 in |
Speed - Torque Characteristics |
- 230 oz-in | - Round Shaft (No Gearhead) | - | - 1000 P/R TTL 2-Channel | - Single | - 24 VDC | - 0.72º | $523.00 | - |
