Product Line |
- VEXTA® |
Motor Type |
- 5-Phase |

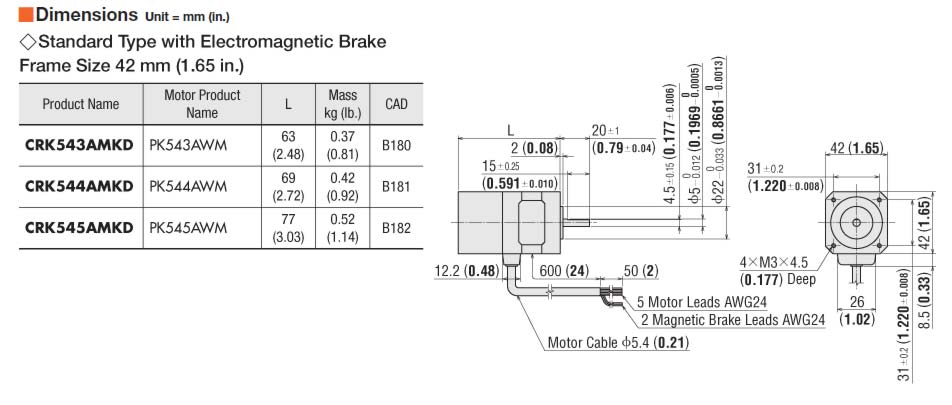

Frame Size |
- 1.65 in42 mm |
Motor Length |
- 2.48 in.63 mm |
Speed-Torque Characteristics |
-
 Speed - Torque Characteristics |
Holding Torque |
- 18.4 oz-in0.13 N·m |
Type |
- Standard |
Shaft/Gear Type |
- Round Shaft (No Gearhead) |
Electromagnetic Brake |
- Equipped |
Shaft |
- Single |
Power Supply |
- 24 VDC |
Current |
- 1.4 A |
Basic Step Angle |
- 0.72º |
Rotor Inertia |
- 0.27 oz-in²50x10-7 kg·m² |
RoHS Compliant |
- Yes |
Safety Standards |
- CE |
CE Marking |
- EMC Directives |
California Proposition 65 |
-
⚠ CA WARNING Cancer risk from exposure to Nickel. See www.P65Warnings.ca.gov Risk of reproductive harm from exposure to Di-n-hexyl phthalate (DnHP). See www.P65Warnings.ca.gov Risk of cancer and reproductive harm from exposure to Di(2-ethylhexyl phthalate (DEHP). See www.P65Warnings.ca.gov See "?" or copy/paste www.P65Warnings.ca.gov in your browser. |
Components |
- PK543AWM (Motor) CRD507-KP (Driver) |
Insulation Resistance |
- [Motor] 100 MΩ or more when 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity. |
Dielectric Strength |
- [Motor] Sufficient to withstand 1.0 kVAC at 50 Hz or 60 Hz applied between the windings and the case for 1 minute under normal ambient temperature and humidity. |
Dielectric Strength (Driver) |
- [Driver] Sufficient to withstand the following for 1 minute under normal temperature and humidity: FG terminals – Power input terminal - 500 VAC, 50 or 60 Hz |
Insulation Class |
- [Motor] Class B [266ºF (130ºC)], Recognized as Class A 221ºF (105ºC) by UL standard |
Ambient Temperature Range |
- [Driver] 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing) [Motor] 14ºF ~ 122ºF (-10ºC ~ 50ºC) (nonfreezing) |
Ambient Humidity |
- 85% or less (noncondensing) |
Operating Atmosphere |
- No corrosive gases, dust, water or oil. |
Temperature Rise |
- [Motor] Temperature rise of the coil measured by the Change Resistance Method is 144ºF (80ºC) or less (at rated current, at standstill, five phases energized). |
Shaft Runout |
- 0.002 in (0.05 mm) T.I.R. at top of output shaft |
Concentricity |
- 0.003 in. (0.075 mm) T.I.R. |
Perpendicularity |
- 0.003 in. (0.075 mm) T.I.R. |
Stop Position Accuracy |
- ±5 arc minutes (±0.084º) |
Radial Play |
- 0.001 inch (0.025 mm) max. of 1.12 lb. (5 N) |
Axial Play |
- 0.003 in (0.075 mm) max. of 2.2 lb. (10 N) |
Radial Load |
- 0 in. from Shaft End = 4.5 lb0.2 in. from Shaft End = 5.6 lb0.39 in. from Shaft End = 7.6 lb0.59 in. from Shaft End = 11.7 lb0 mm from Shaft End = 20 N5 mm from Shaft End = 25 N10 mm from Shaft End = 34 N15 mm from Shaft End = 52 N |
Axial Load |
- 2.2 lb10 N |
Static Friction Torque |
- 1.9375 lb-in0.22 N·m |
Brake Type |
- Power Off Activated Type |
Brake Power Supply |
- 24 VDC±5% |
Excitation Current |
- 0.08 A |
Number of Sequences |
- 64 maximum |
Input Method |
- ASCII commands via RS-485 |
Frequency |
- 1 to 500,000 pps (1 step increments) |
Linked Motion |
- 4 linked motions, maximum |
Communication Method |
- In conformance with EIA-485 |
Transmission Rate |
- Selectable from 9600, 19200, 38400, 57600, 115200 bps |
|
|
|
|
|
|
